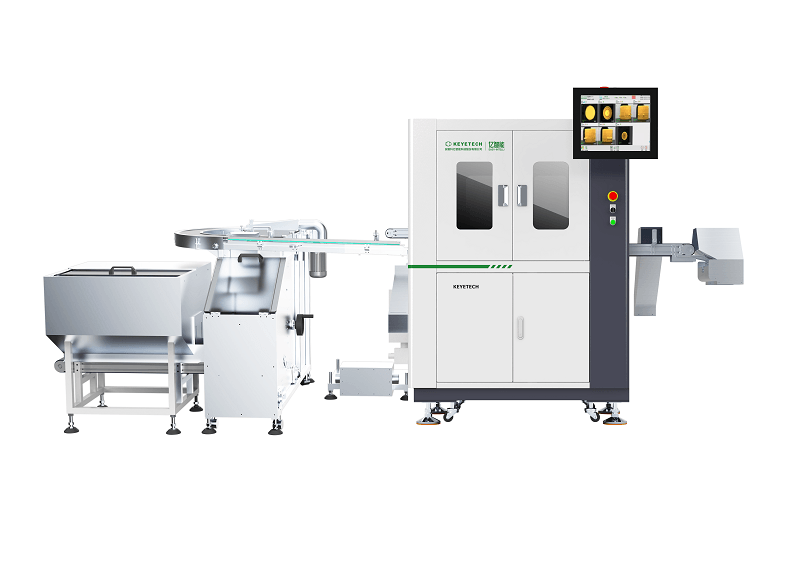

High speed cap visual inspection system can provide online high-speed visual inspection of plastic bottle caps, improving detection efficiency and accuracy, and reducing labor costs. Using high pixel industrial cameras for precise recognition, the number of cameras is designed according to demand, with an accuracy of 0.1mm and a speed of 300~2500 per minute (customizable speed according to detection needs).
This closure cap visual inspection system uses six industrial cameras to realize 360° full‑area coverage for cap surface inspection.
It is compatible with testing multiple specifications of products, saving costs. Detect and remove defects such as black spots, color differences, impurities, threads, compression rings, broken rings, notches, burrs, flashing, deformations, dimensions, double gaskets, reverse gaskets, inner plugs, and mold numbers on caps online.
Main Specifications
| Defect Type | Color difference, black spot,stain, thread, burr, flashing, notch, deformation … |
| Defect Position | Cap top, sidewall, cap concave screw thread |
| Inspection Speed | 300pcs/min~2500pcs/min |
| Precision | 0.1mm |
| Accuracy Rate | 99.5% |
| Compressed Air | 0.5Mpa ~ 0.8Mpa |
| Net Weight | 350Kg (Net weight) |
| Dimension | 3700*1300*1785mm (with cap handling device) |
| Power | 5~7Kw |
| Voltage | According to customers’ |
Main Configurations
| Description | Model/Brand | Quantity |
| AI Algorithm Software Series | KVIS 16 | 1 Set |
| AI Cloud Service Platform | KeyeTech | 1 Set |
| Industrial Camera | KeyeTech / HIKVISION | 6 Pcs (customizable) |
| Plane Lens | HIKVISION | 6 Pcs (customizable) |
| Strobe Light Source | KeyeTech | 1 Set |
| Photoelectric Sensor | SICK (Germany) | 1 Pc (customizable) |
| Electromagnetic Valve | SMC (Japan) | 1 Pc (customizable) |
| Industrial Power Kit | LRS Seris | 1 Set |
| Main Control Panel | KY-INS-V21 | 1 Set |
| Industrial Control Device | RTS-3060 | 1 Set |
| Embedded Computing Unit | KYEBS-1684 | 1 Set (Optional) |
| HID UI System | 21 Inch | 1 Set |
| Mechanical Structure | 304 Stainless Steel | 1 Set |
Product Applications
KeyeTech high speed cap visual defect inspection machine can be used for water and beverage caps defect detection.
See what’s kind of defects we can inspect
Main Technical Advantages
HID Industrial CameraSelf-developed high precision industrial camera together with field famous HID lens, equipped with KeyeTech AI algorithm system, it can be achieved to high speed and high precision visual imaging effect.
Customized Light SourceSelf-developed strobe LED light source, design the special use light source based on different character appearance defects. The integrated cavity light source can get more uniform imaging of the sidewalls.
In-Line Control SystemHigh efficiency GPU processing unit and customizable HID human-computer interaction software work together with high performance electromagnetic valve can achieve to full automated control.
KeyeTech AI SystemKeyeTech software system adopt AI deep learning algorithm is the core technical advantages of the machine, reaching to more precise, faster speed imaging and defect recognition, greatly improve the efficiency.For overseas packaging manufacturers, the closure cap visual inspection system supports remote AI debugging and online diagnosis.
